菲律宾移动离心式滚筒筛淘金设备

【菲律宾移动离心式滚筒筛淘金设备流程概述】Technical process
  原料通过工程车辆送入进料斗,首先筛分出较大不合格的物料,细料通过高压水反冲均匀进入多铰刀链条驱动式滚筒筛内, 通过滚筒筛内多条铰刀把成团粘泥绞散,中央供水管道永远朝向下部对物料进行充分冲洗将粘泥冲走,然后筛分为 6mm 以上与 6mm 以下两种规格。其中 6mm 以上物料排入一条固定溜槽进行大颗粒矿物提取回收后,废料排入废料区域,回收率达到 90% 以上;
6mm 以下物料排入料箱内通过一台沙泵打入卧式全自动排矿离心机内进行精选(沙泵供料能够保证进料浓度在 30%以下,并 且对物料进行二次清洗,极大提高回收率),小于 6mm 以下的矿物会在卧式自动排放离心机通过 PLC 电脑控制下自动排入精料 箱内,废料自动排出到废料区域。
  The raw material into feed hopper by excavator,then swilled by high pressure water into reamers trommel screen and to be making the caly into mixture with water,the central water swilling and take the clay off, it to be classified into 2size>6mm and ≤ 6mm,the material  >6mm into one fixed sluice to get nugget,the scrap get rid into the scrap pool;
The material ≤6mm into horizontal automatic centrifuge concentrator by one set 4inch sand pump which can control the concentration below 30% and also the 2nd washing to mineral efficiently,finally the concentrate automatic discharged and scrap getting
rid into scrap pool.

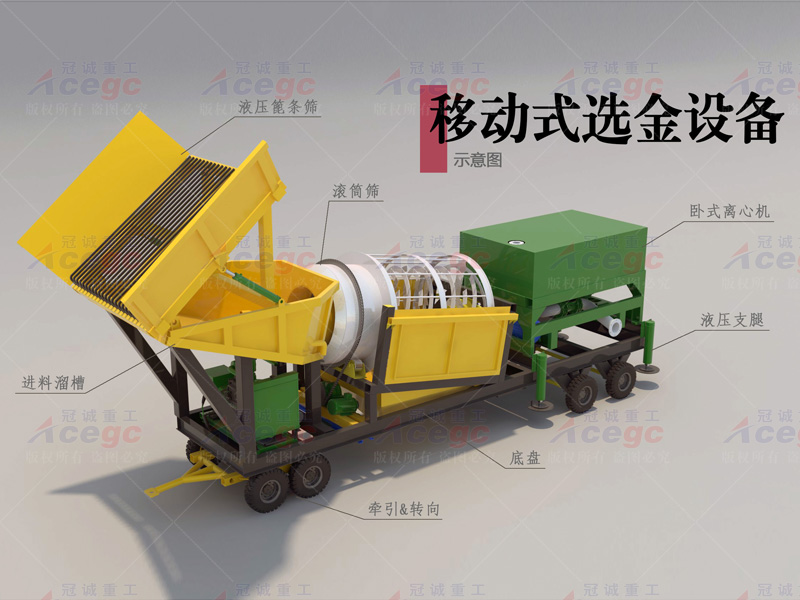

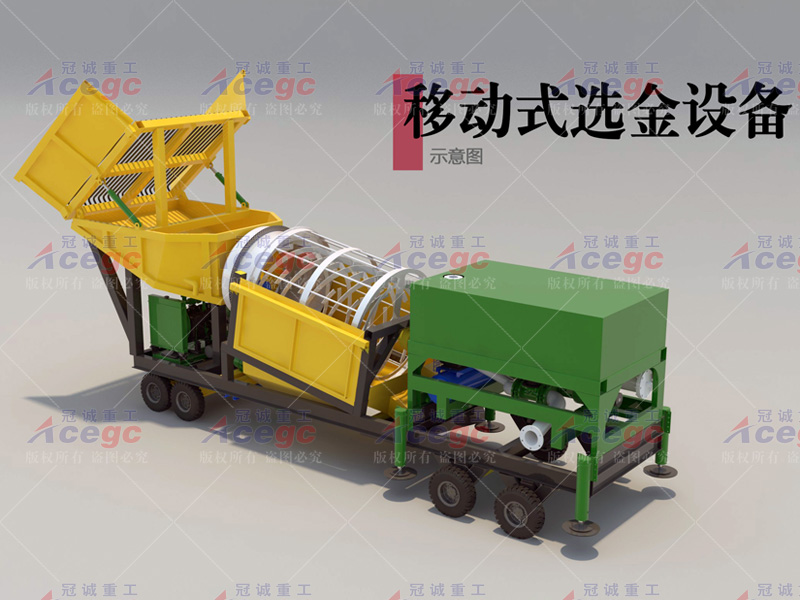

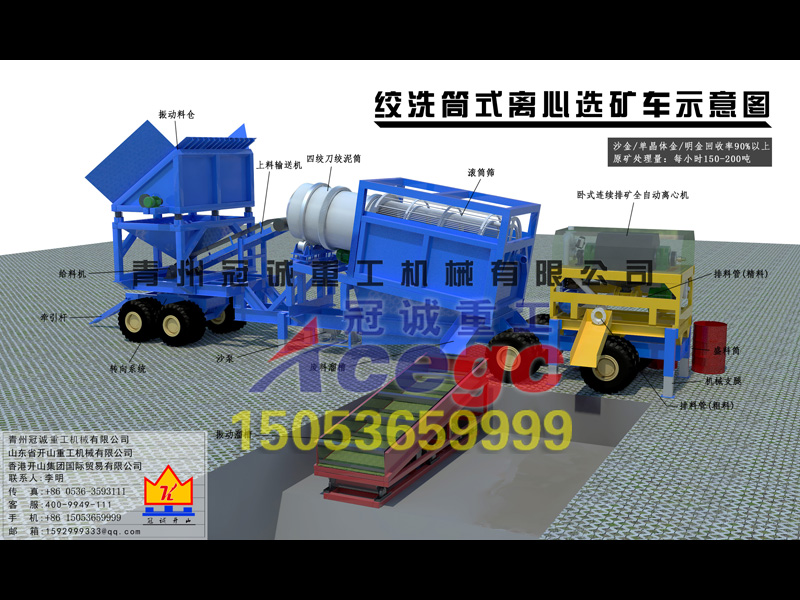

菲律宾移动离心式滚筒筛淘金设备方案效果图:

菲律宾移动离心式滚筒筛淘金设备

新型移动离心选淘金设备

新型移动离心选淘金设备

菲律宾移动离心式滚筒筛淘金设备为一体式移动离心选矿设备,原矿处理量每小时 50-100 吨(6mm 以下物料离心机处理量 15-30 吨/时),本套移动选 矿设备结构设计紧凑、故障率低,其结构如下:
This set of equipment is integrated mobile centrifugal dressing equipment, raw ore processing capacity of 50-100 tons per hour (below 6mm material centrifuge processing capacity of 15-30 tons/hour), this set of mobile dressing equipment structure design compact, low failure rate, its structure is as follows:

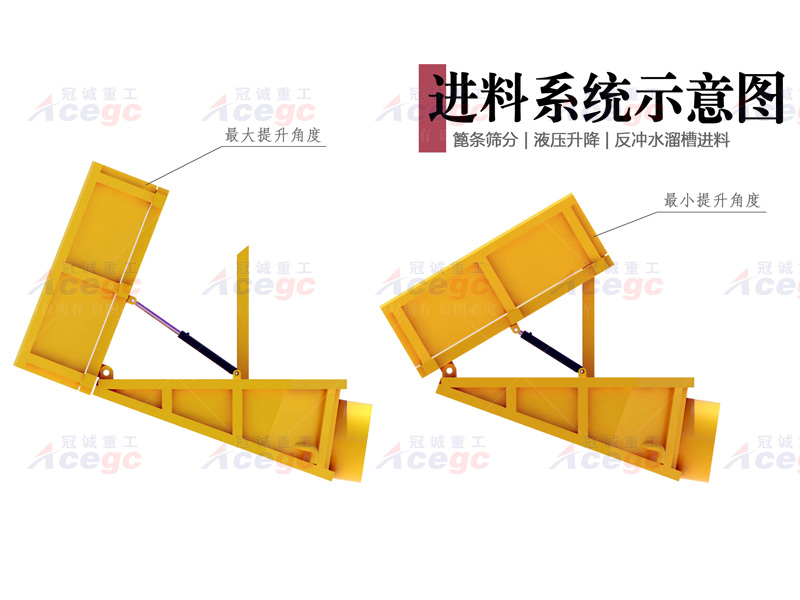

1、进料系统 Feeding system 进料系统为双层结构,上层为液压式可变角度篦条筛,下层采用大溜槽进料,采用高压水反冲系统,可以保证均匀进料; The feeding system is double layer structure, the upper layer is hydraulic variable Angle grate screen, the
lower layer adopts big chute feeding, high pressure water recoil system, can ensure uniform feeding;

2、绞洗式筛分系统 Wringing and washing screen system 滚筒筛动力采用链条驱动设计,动能传递均匀、传递效率高; 滚筒筛内含多条铰刀从头部覆盖至尾部,能够对物料进行充分绞洗脱泥,极大的提高了筛分与选矿作业效率; 滚筒筛供水系统采用中央供水+侧供水方式,中央供水定向冲洗滚筒筛底部物料,侧供水负责冲洗外层筛网。
Roller screen power using chain drive design, kinetic energy transfer uniform, high transfer efficiency;
The roller screen contains a number of reamers from the head to the tail cover, can fully wring and elution of the material, greatly improving the efficiency of screening and mineral processing operations;
The drum screen water supply system adopts the central water supply + side water supply mode, the central water supply is directed to flush the material at the bottom of the drum screen, and the side water supply is responsible for washing the outer screen.

3、选矿系统 Beneficiation system 选矿系统采用卧式全自动排矿离心机进行选矿,保证使用寿命与回收率;

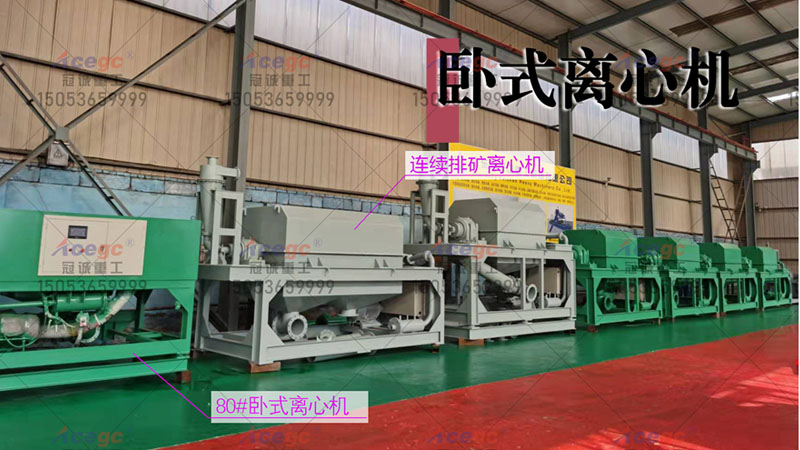

离心机采一台 80#卧式全自动排矿离心机,该机采用 PLC 电脑全自动控制,与立式离心机相比具有以下优势:
Mineral processing system adopts horizontal automatic ore discharging centrifuge for mineral processing to ensure service life and recovery rate;

4、供水系统 Water supply system
本机自带分水器,工作时只需要将进水管道连接至分水器即可开始正常工作。
The machine has its own water distributor, when working, only need to connect the water inlet pipe to the water distributor can start normal work.

5、移动系统 Mobile systems
移动系统部件由底盘与牵引转向两大部件组成,底盘采用 25#工字钢梁自主设计,保证设备强度,4 轴 8 条实芯工程轮 胎,4 条液压支腿支撑卧式全自动排矿离心机,可以使用装载机等设备进行牵引,轻松移动至工作场地。
The moving system is composed of chassis and traction steering. The chassis adopts 25# I-beam independent design to ensure the strength of the equipment. The chassis adopts 8 solid core engineering tires with 4 shafts and 4 hydraulic legs to support horizontal automatic ore discharge centrifuges.

菲律宾移动离心式滚筒筛淘金设备配置冠诚重工生产研发的新型高效环保离心机,全程只用水和电,对环境无污染,是一款友好的金矿提取设备。

新型移动离心选淘金设备

离心式滚筒筛淘金设备

Centrifuge mining an 80# horizontal automatic ore discharging centrifuge, the machine adopts PLC computer automatic control, compared with the vertical centrifuge has the following advantages:

动排

排矿心机

方式

PLC 电脑全自动控制

人工手动控制

方式

自动

手动

结构

卧式(两端固定)

立式(下端固定)

高(使用寿命高)

低(使用寿命低)

方式

不需要水平硬化基础

水平硬化基础

方式

沙泵(能控制进料浓度在 30%)

高低落差自流(不能控制进料浓度)

90%以上

70%

动设备

型号

1200# 及以上(需要订制)

80#

Horizontal centrifuge

concentrator

Vertical centrifuge concentrator

The system

PLC conctrol

Handling control

Discharging

Automatic discharge

Handling discharge

The shaft

Horizontal(shaft 2sides fixed)

Vertical(buttom sidefixting)

Working

Long(working life)

Normal(working life)

Installation

No need seeking ground level

Need seeking ground level

Feeding

Sand pump(easily control the

feeding concentration 30%)

By gravity feeding(cann’t control the feeding concentration)

Recovery

Above 90%

70%

Application field

Good peformance in jolting

surrounding such as mobile mining equipment,dredger etc

Cann’t work in jolting surroundings.

Biggest capacity

model

1200# or bigger capacity need

customized

80#


菲律宾移动离心式滚筒筛淘金设备技术参数&报价清单 Technical parameters & Quotation list

名称
Name

规格
Specification

数量
Quantity

功率
Power

备注
Remark



底盘 Chassis

宽度:1.8 米,长 7.3 米 材质:25#工字钢 含牵引&转向系统
四轴 8 条实芯工程轮胎



1 套



-





进料系统
Feeder System

大溜槽:2100X2800mm
材质:底板&侧板 Q235X10mm,外侧槽钢护边; 液压式篦条筛:2100X2200mm
材质:框架 120X120 方管,篦条:Ø30mm 圆钢 液压油缸:2 支



1 套





-





滚筒筛
Rotary screen

绞洗式内径 1.3 米,外径 1.6 米,净筛网长度 1.8 米 内含多条铰刀从头部覆盖至尾部;
采用链条传动; 电机功率:4KW



1 套



4



卧式离心机
Horizontal centrifuge

80#卧式全自动排矿,PLC 电脑控制 电机功率:5.5KW 空气压缩机:3KW



1 套



8.5



离心式清水泵
Acting centrifugal fresh water pump





1 台



5.5

离心机专用 Centrifugal air compressor oil

沙泵 Sand pump

离心机供料沙泵 4 寸沙泵+11KW 电机

1 套

11



固定溜槽 Fixed chute

宽度 1 米,长 2 米

1 套



-

含淘金毡 Containing gold
blanket


液压支腿 Ydraulic leg



4 支

-



液压站 Hydraulic pressure station

5.5KW

1 套



5.5





分水器 Water knockout drum





1 套



-

含机器内部供水管道
Including machine internal water supply pipe

配电箱 Distribution box



开关品牌:德力西或正泰



1 套



-

含电机线,不含电缆线
Including motor line, excluding cable line

总装机功率 Total installed power

34.5KW(不含给水泵 Do not include feed pump

出厂价格
ex-factory price (税前价格,不含运费, 含税+13%)(Price
before tax, freight not included, tax +13%)



50HZ 380V

主设备 Primary device:¥ 元 发电机组 Generator set100KW 玉柴):                ¥



60HZ 230V



主设备 Primary device:¥ 0

以中文为主!Mainly in Chinese!

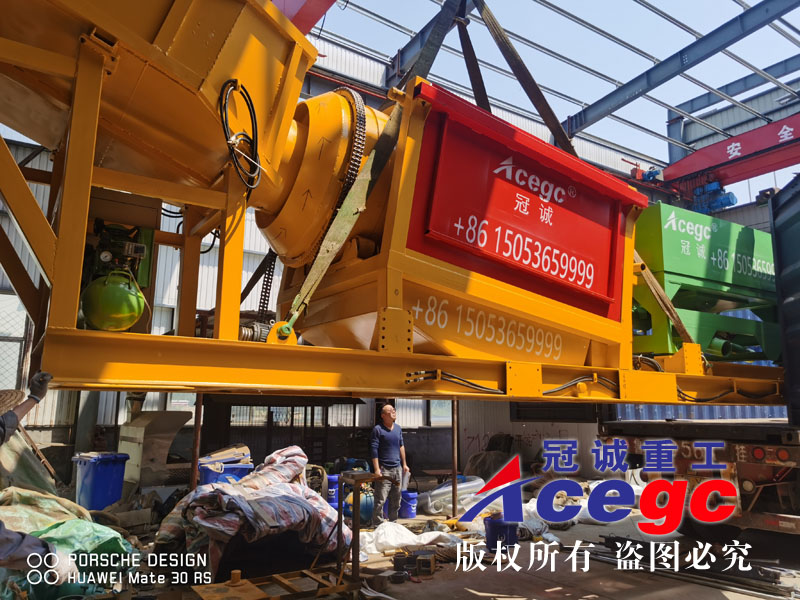

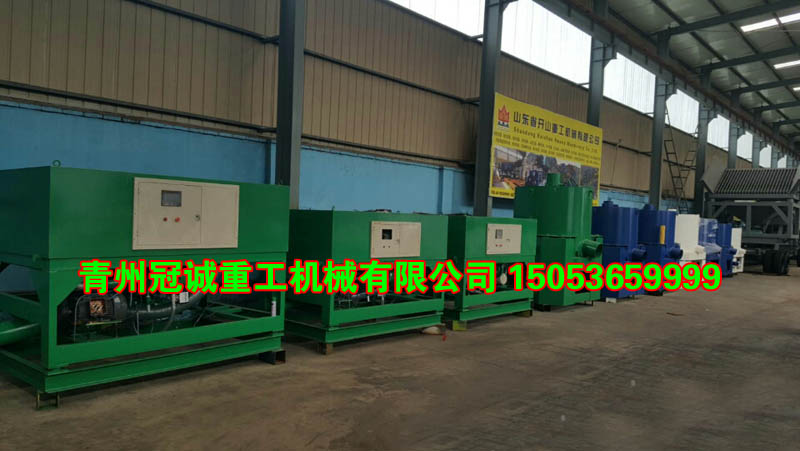

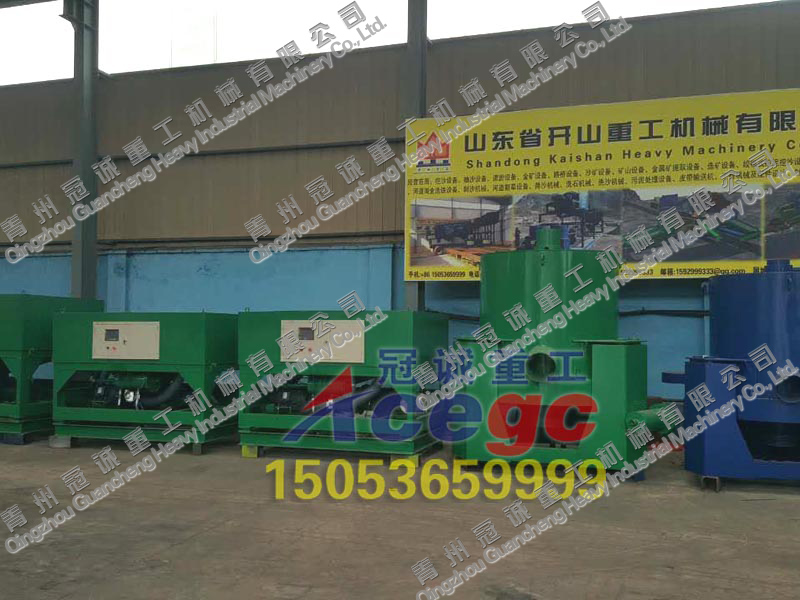

菲律宾移动离心式滚筒筛淘金设备厂家生产现场:

滚筒筛淘金设备

滚筒筛淘金设备

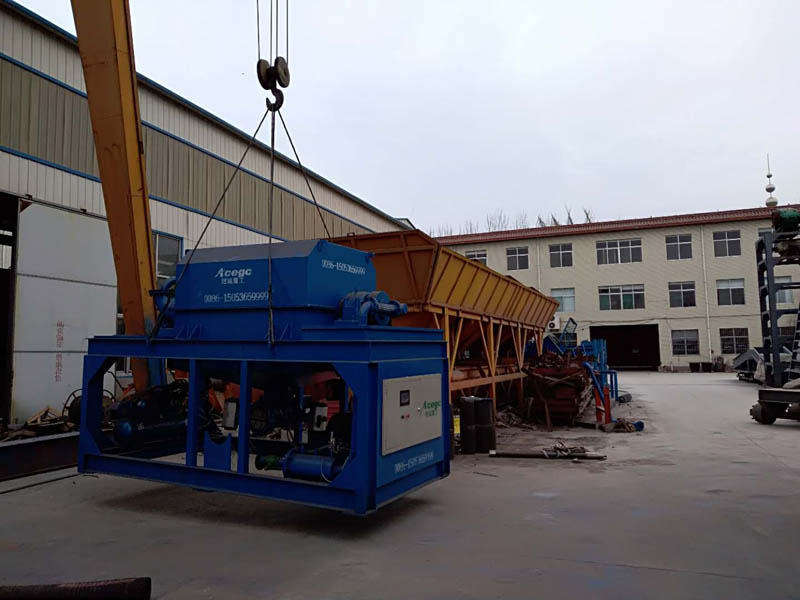

菲律宾移动离心式滚筒筛淘金设备发货现场:
